delivery contents:
Frame:
- Base frame welded from high quality steel UNI S235 JR

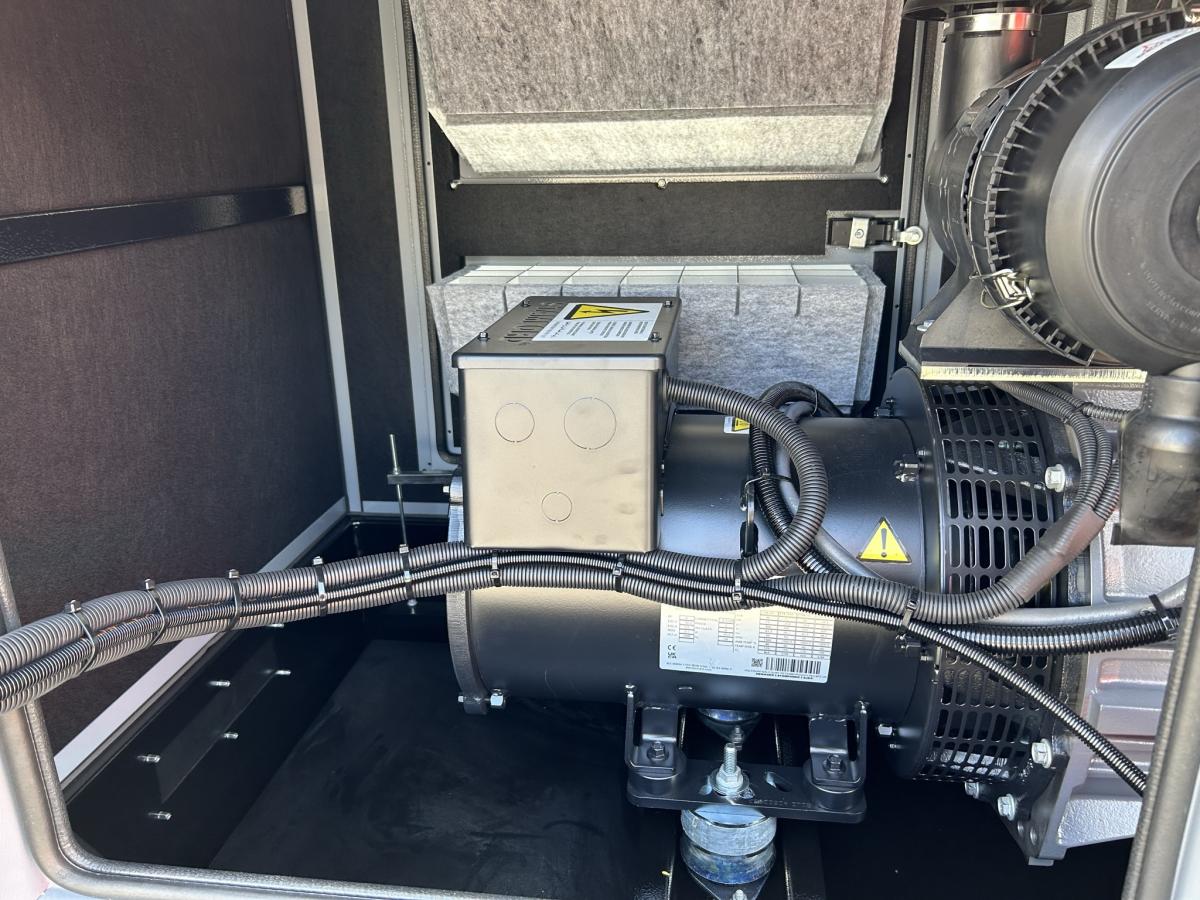

- Very resistant vibration dampers between engine, generator and base frame
- Tank with drain for emptying and collection tray for liquids according to AwSV requirements
- Dedicated area for inserting the load cables
- Manually operated oil suction pump

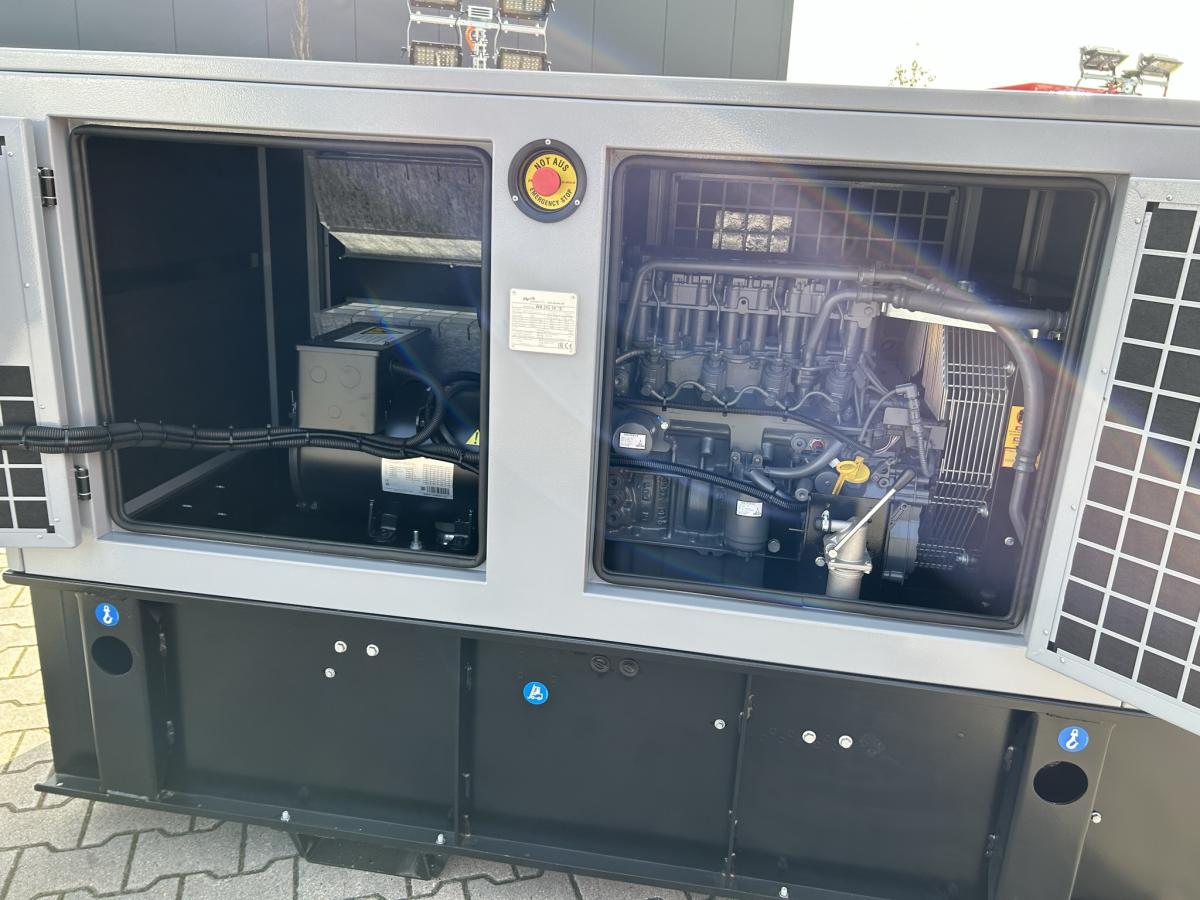

Sound insulation housing:
- 4 large doors for easy access and maintenance
- Galvanized sheet DC01+ZE25/25 (EN 10152: 2009)
- High-precision sheet metal cutting process using nitrogen laser technology to prevent rusting
- Sandblasting and KTL treatment of the supply and exhaust air grilles
- Perfectly fitting seals against weather influences
- Key lockable locks on each door
- Powder coated in gray RAL 7046, for outdoor applications
- Rain cover over the exhaust
- External recess for filling with fuel
- Soundproof panels, eco-friendly: 100% recyclable, 35mm thick, self-extinguishing, class 1, washable, mechanically fixed to the frame
exhaust silencer:
- as a high-performance silencer in industrial design
- Integrated in the noise protection hood
- With aluminum coating
Modular control panel:
- Metal control panel closed on the back by a casing
- Dedicated area for inserting the cables for connection to the load
-/-
Optional, available at extra cost: (subject to availability)
1 x CEE socket 63 ampere 1H coded, required for building feed-in according to VDE 0100-551 Supplement 1 (2019-06) for an additional charge including assembly of 351 euros net
Automatic start with mains & generator switching 4-pin | 90 amps
External emergency power switchgear for installation in the building and 4-pole mains generator switchover
Function: In the event of a power failure, the start command is sent to the diesel unit. When the nominal speed and nominal voltage are reached, the generator switch is switched on. When the mains returns, the automatic system monitors the mains voltage. When this is stable again, the system switches back to mains operation. The diesel unit is stopped after the cooling time and waits in automatic mode for the next power failure.
The emergency power system as an emergency power supply is ready for operation and immediately available from the Verl warehouse.
